Where does the fusebox go?

 I had a question and it would appear so did a fair bit of the internet:

    Where does the fusebox go on a CBR400 NC29?

Fusebox floating around the nose fairing

The fusebox on my bike has been floating about since I have owned it and I have, a few times, looked to find where it is meant to go.

I was under the impression I was missing a bracket, probably the one that the plugs normally sit in but the internet was lacking in answers. My go to CMSNL shed the fusebox as part of the loom which wasn't super helpful but it did show the plug bracket which did not show a fusebox mount.

I did find mention of a mounting point on the inside of the plastics. As I had only had aftermarket fairings on my CBR400's, none of them had brackets but I did remember I still had a nose cone from the race CBR400.

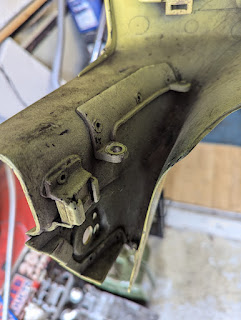

Stock fairing brackets

Fortunately for me, this nose fairing is of higher quality or possibly even genuine so had both the clip bracket for the fuse box on the left of the image and the stud and hole for the plug bracket to be secured to.

Mystery solved and well worth sharing. If you have aftermarket fairings, let me know what your solution was for mounting the fusebox.
